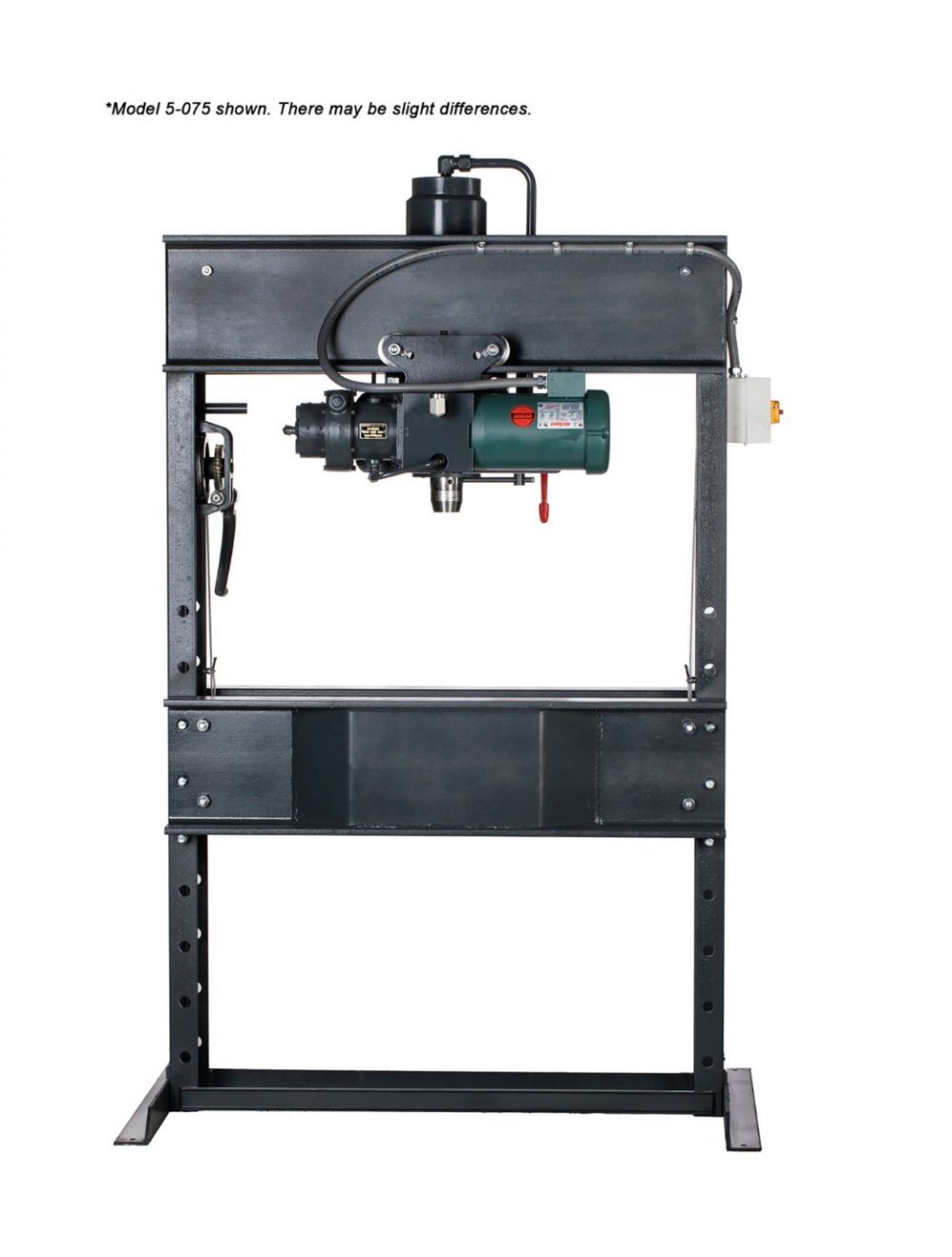

Dake Elec-draulic Double Acting Presses-150 Ton
$26,162.00
Availability:
In stock
SKU
8-150
Features
- Electric operation provides smooth, consistent pressing action.
- Variable ram speed allows fingertip control of ram movement for precise pressure control.
- H-frame mounted control allows convenient control of press when workhead is out of operator's reach.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double-acting cylinder permits pulling as well as pressing ram action.
- Safety valve protects against overloads.
- T-ring seals prevent pressure loss.
- Optional bolt flange for tooling attachment may be substituted for flat ram nose.
Standard Equipment
- Frame
- Two forged steel V-blocks
- Flat ram nose
- Pump
- Safety Relief Valve
- Self-locking table hoist
- Double-acting workhead
- Pressure gauge
- 4-way throttling valve
| Model | 8-025 | 8-050 | 8-075 | 8-080 | 8-150 | 8-200 |
|---|---|---|---|---|---|---|
| Number | 908025 | 908050 | 908075 | 908080 | 908150 | 908200 |
| Capacity (tons) | 25 | 50 | 75 | 75 | 150 | 200 |
| Horsepower | 2 | 2 | 2 | 10 | 10 | 71/2 |
| RPM | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Ram speed-press (ipm) | 15" | 8" | 5" | 30" | 17" | 8" |
| Ram speed-return (ipm) | 35" | 22" | 15" | 80" | 38" | 20" |
| Width between uprights | 323/4" | 323/4" | 44" | 44" | 48" | 48" |
| Width between table channels | 71/4" | 71/4" | 81/4" | 81/4" | 121/4" | 183/8" |
| Minimum ram to table | 113/4" | 101/8" | 75/8" | 75/8" | 113/4" | 6" |
| Maximum ram to table | 463/4" | 451/8" | 375/8" | 375/8" | 313/4" | 30" |
| Ram travel | 10" | 10" | 10" | 10" | 16" | 16" |
| Base Dimensions | 431/2"x36" | 431/2"x36" | 551/2"x36" | 551/2"x36" | 66"x42" | 64"x48" |
| Height | 83" | 86" | 86" | 86" | 95" | 106" |
| Weight | 1060Ibs | 1360Ibs | 1950Ibs | 2100Ibs | 3620Ibs | 6100Ibs |
| Shipping Cost | 0.00 |
|---|---|
| Shipping Calculation: | All Shipping Costs are calculated after order is placed and inventory is confirmed |
