Dake Automatic Cold Saws

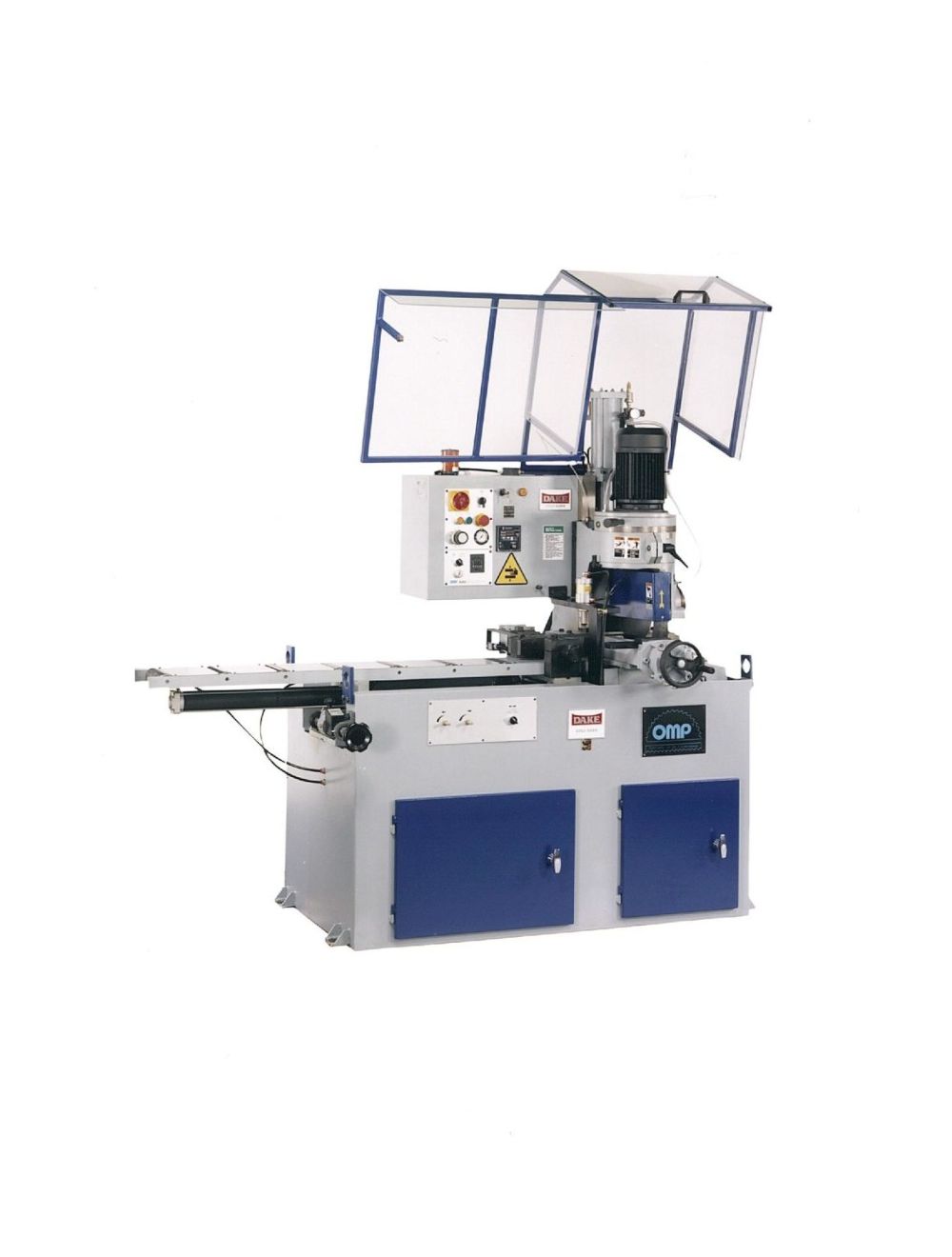

The Euromatic 370PP Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45 right of center and up to 90 left of center.
SPECIFICATIONS
| MODEL NUMBER | EUROMATIC 370PP | EUROMATIC 370PP-L |
|---|---|---|
| Part Number | 976208-2 | 976210-2 |
| Voltage | 220 volts/ 440 volts | 220V/ 440V, 3 Phase |
| Horsepower | 3.5/4.5 | 3.5/4.5 |
| Cutting Ability | Ferrous / Non-ferrous / Plastic | Non-Ferrous/Plastic |
| Maximum blade diameter | 14-1/2in | 14-1/2in |
| Maximum vise opening | 8-1/4 in | 8-1/4in |
| Maximum feed vise opening | 6-1/2in | 6-1/2in |
| Maximum Angle | 45 Left / 90 Right | 45 left |
| Slotting | Yes | No |
| Phase | 3 | 3 |
| Speeds | 25/50 rpm | 1500/3000 rpm |
| Weight | 1,716 lbs | 1,716 lbs |
| Solid round 90 capacity | 4in | 4in |
| Solid round 45 capacity | 3-5/8in | 3-5/8in |
| Tube 90 capacity | 5-1/16in | 5-1/16in |
| Tube 45 capacity | 5in | 5in |
| Square 90 capacity | 4in | 4in |
| Square 45 capacity | 3-7/8in | 3-7/8in |
| Rectangle 90 capacity | 4in x 7in | 4in x 7in |
| Rectangle 45 capacity | 4in x 6in | 4in x 6in |
| Work height | 35in | 35in |
| Height | 90in | 90in |
| Width | 83in | 83in |
| Depth | 54in | 54in |
FEATURES
-
Head rotates 45 right of center for miter cutting and up to 90 left of center for miter cutting and slotting.
-
Table features two removable surface wear plates to support longer cut lengths.
-
Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment.
-
Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm.
-
Minimum 6" remnant drop piece size for maximum material use.
-
Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute.
-
Manual oiler to lubricate 1" thick, hardened ways.
-
3.5/4.5 HP motor has the muscle to drive a 14-1/2" or 12" blade quickly and quietly through solids.
-
Clear acrylic hood has shock assists for raising and lowering and electrical interlocks.
-
Swap cutting head to gain non-ferrous/ferrous option on same saw
MODEL OPTIONS
-
Non-ferrous cutting head
-
Outbound unloading table
-
575V Transformer
-
60in Roller Table
STANDARD EQUIPMENT
-
Blade
-
Coolant
-
Saw blade selector calculator
-
Tools kit for changing blades
-
Instruction and service manual
