Boschert Eagle & Eagle 250 Hydraulic Power Notcher

Boschert Eagle & Eagle 250 Hydraulic Power Notcher

Boschert Lite Hydraulic Power Notcher

All Boschert notchers offer superior performance, clean cuts and high accuracy. The Lite notcher features Boscherts patented TRI-GIDE technology, a 3-point ram guidance system that gives the machine its world-famous precision and durability.

$12,750.00
SKU

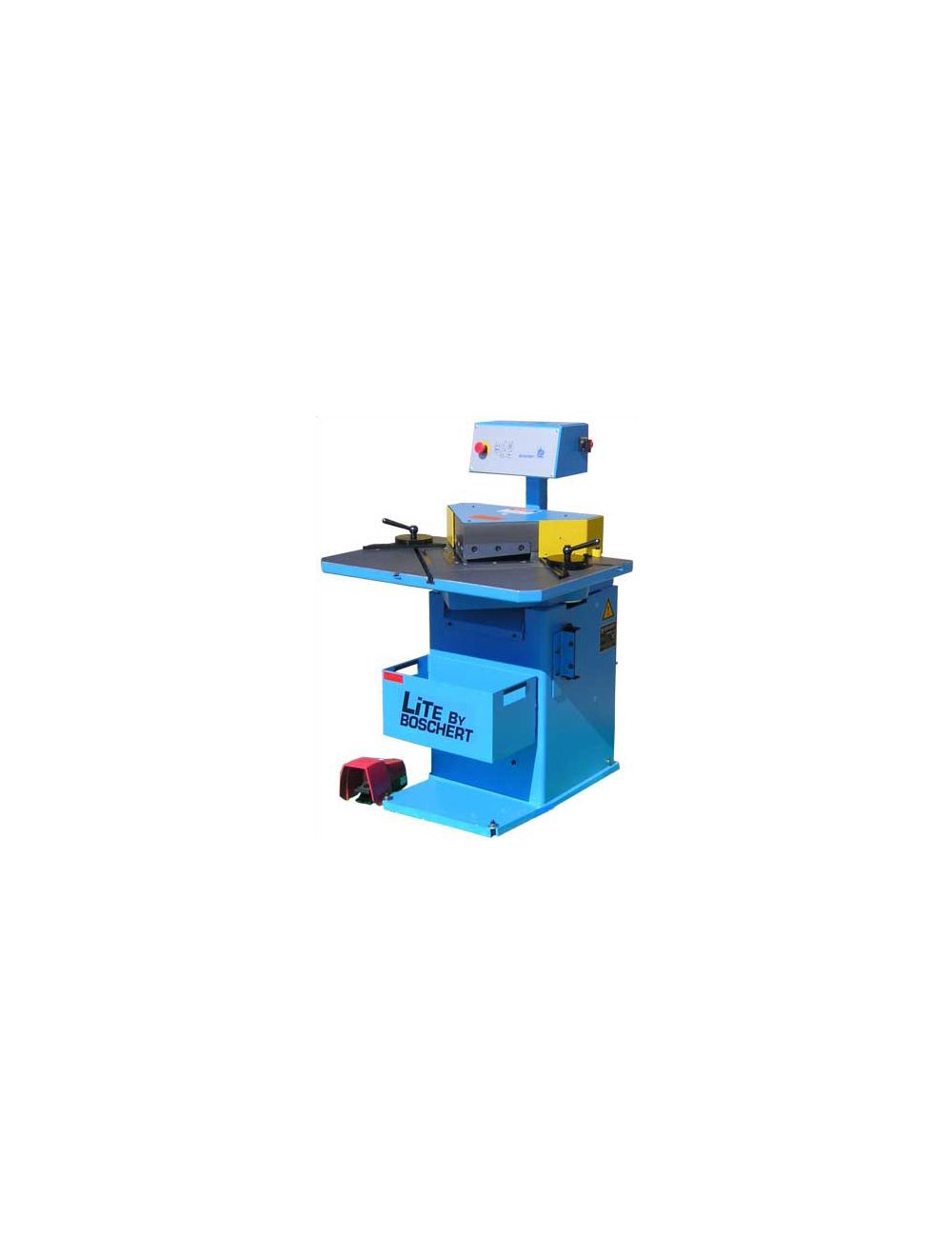

Boschert Lite Hydraulic Power Notcher

The Lite notcher with a 4.5 horsepower hydraulic motor offers front-to-back cutting with Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping. Choose from a 90 fixed angle or variable angles from 30 to 120. Capacity is 5/32in mild steel capacity and 10-gauge stainless steel capacity, with notch widths of 8-7/8in x 8 7/8in for a 90 notch. Each blade is complemented by a parallel engraved brass scale and T-slot.

The Lite is adjustable up to 50 strokes per minute and can be operated with a moveable electric foot pedal in jog, single or continuous mode. The Lite is equipped with a 35in wide by 25in deep table with a milled bed surface so materials do not float or stick and is configured with two heavy-duty adjustable stops with 10 horizontal bars. It also comes with a scrap bucket.

Technical Data

Cutting Capacity 5/32" (10ga.)
Cut Length 8-7/8" x 8-7/8"
Cut Angle 90
Machine Weight 1452 lbs
Overall Dimensions 49" x 36" x 53"
Table Dimensions 35" wide by 25"
2nd Station -
Motor Size 4.5 hp

CLICK TO VIEW BROCHURE

Boscherts powerful notchers offer superior performance, clean cuts and high accuracy. Enjoy a 90 fixed angle and variable angle from 30-120. The Lite Hydraulic Power Notcher offers front to back cutting, 50 strokes per minute (adjustable), solid state circuitry and a milled bed surface for no-float and no-stick operation. Capacity is 5/32in mild steel capacity and 10 ga. stainless steel capacity, with notch widths of 8-7/8in x 8 7/8in 90 notch. Boschert Lite Hydraulic Power Notcher Overview: 5/32 mild steel capacity 10 ga. stainless steel capacity 8-7/8 x 8-7/8 90 notch Front to back cutting to hold material against stop Milled bed surface for no float or stick operation 35 wide by 25 deep table with milled surface so material does not float or stick Front to back cutting Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping Two heavy-duty adjustable stops with 10 horizontal bars One engraved brass scale and T-slot parallel to each blade Moveable electric foot pedal 50 strokes per minute (adjustable) Solid state circuitry Jog, single or continuous mode 4.5 horsepower motor Scrap bucket
