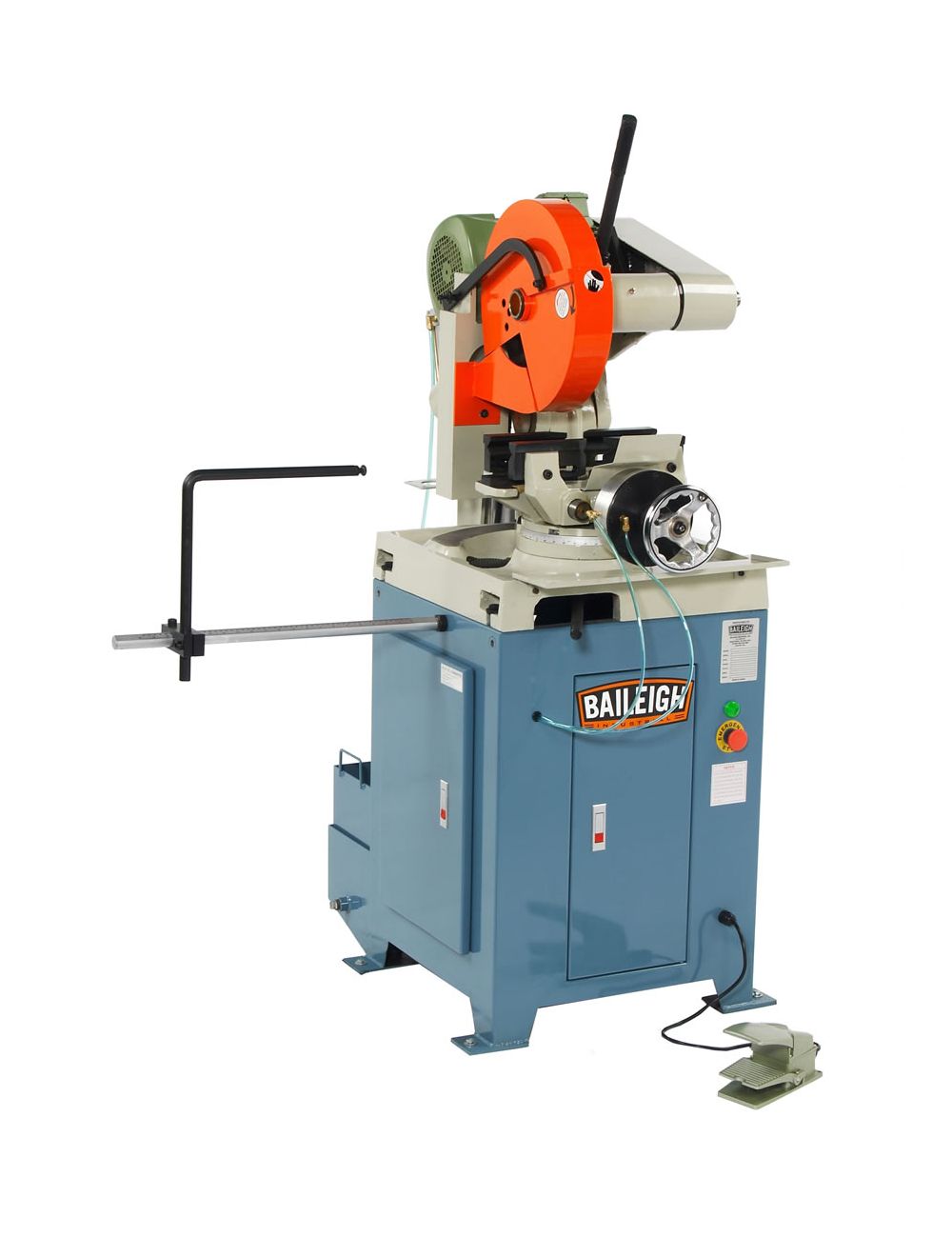

Baileigh NON-FERROUS METAL CUTTING COLD SAW CS-355SA

Cutting production runs of aluminum or copper Need pristine results This semi-automatic cold saw runs at a high speed to make cuts with ripple-free edges every time.

• Accepts up to a 14' blade.
• Turns at 3,200 rpm, perfect for cutting soft metals known for gumming up blades.
• Maximum capacity of 4.25' round tube at 90.
• Miters 45 right and 90 left.
• 5.5 hp high-speed motor runs on 220-volt 3-phase power.
• Motor drives the blade with a belt to reach the maximum RPM as quickly as possible with few moving parts that could break down.
• Easy to operate: just put the material in the pneumatic (air-powered) vise and step on the foot pedal to clamp.
• Semi-automatic system will start the blade, lower it, and cut the material.
• Once the cut is complete, the blade shuts off and the head automatically rises to the top.
• Automatic descent and return save time, reduce operator effort, and prolong blade life due to the consistent descent speed.
• American-style vise is self-centering, so you don' t have to adjust it when you change between diameters of tube or pipe.
• Vise securely holds the material in place with jaws on both the left and right sides of the blade.
• Design adds semi-automatic features to our manual CS-355M, a time-tested staple of our of cold saw line.
• Stop rod lets you set up repeatable lengths for production runs.
• Cast iron head and base reduce vibrations so that the blade produces accurate cuts for many productive years.
• Rugged steel stand supports the saw base and stabilizes the machine.
• Flood coolant system helps the blade cut more smoothly for cleaner, higher-quality results.
• Coolant system also makes blades last longer and extends the entire circular saw' s lifetime of use.
• Replacement parts are in stock at our Wisconsin headquarters, so we can ship them quickly.
• This circular saw is covered by a 1-year parts warranty.
