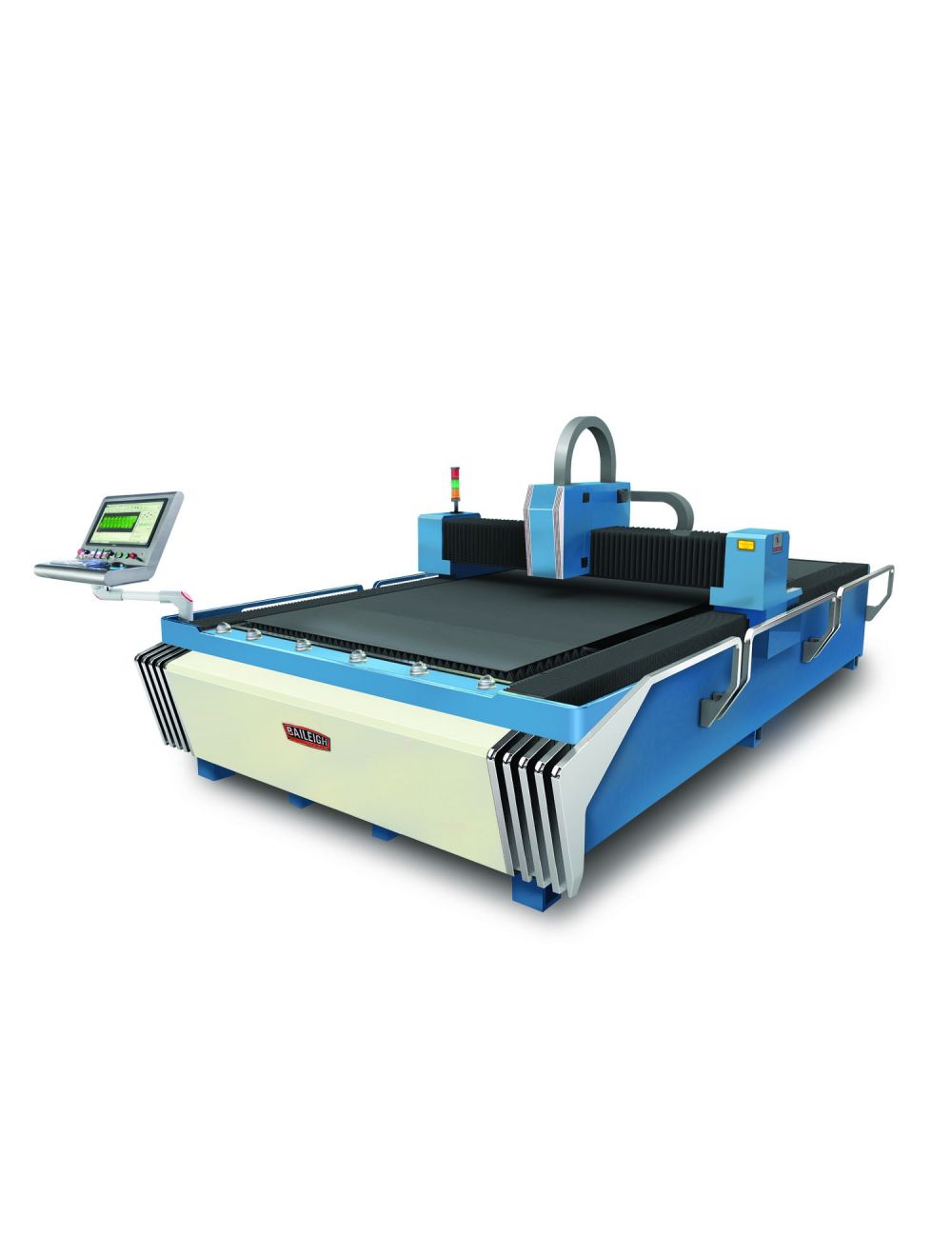

Baileigh CNC LASER TABLE - FL-510HD-500

Our CNC Laser Table - FL-510HD-500 has the structural strength to handle 5' x 10' sheets. This 500 watt fiber laser table is ideal for production runs. It arrives fully assembled and comes with software. Efficient 500 wat fiber laser Includes chiller- air dryer and exhaust system Runs on 220-volt three-phase power. Control the X- Y- and Z axis movement from the sturdy podium with large console screen and keypad. Includes easy-to-learn design software that you can load into any basic PC (more details below). Delta brushless servo motors- controlled by Delta servo motion controllers- drive the gantry. Industrial-grade gantry travel system for the X- Y & Z axis made from extremely rigid extruded aluminum. Gantry can move out of the way for a full 10-foot sheet during loading- minimizing the chance of machine damage. High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control. Axes ride on heavy-duty ground and polished square shafts. Wiper dies on shafts keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up. Our design reduces the risk of damaging the table while loading or pinching your forklift. CNC laser table weighs an impressive 6600 lbs. Fully-welded boxed tubing construction can easily support the weight of maximum capacity material. Steel framework will hold its shape and stay accurate for decades- unlike many competitors' aluminum frames- which buckle and warp under heat. Pre-built CNC laser table saves you time and effort.. The alignment is already set up and correct when it arrives. Covered by a 1-year parts warranty. You' ll benefit from lifetime technical support by phone. Call up one of our experienced reps whenever you need troubleshooting. For more detailed information on the FL-510-500 Fiber Laser Table- click here. BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED) The CNC Laser Table - FL-510HD-500 comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the laser table via a USB drive. To learn more or download a free trial- click the BobCAD-Cam logo above. Questions Call us at 1-920-684-4990 and talk to a Baileigh expert. *Onsite training includes pre-run inspection and operation training for a maximum of 3 days. If more time is needed it will be billed seperately. Does not include initial placement and set-up of machine. For More information on machine set-up- click here.
