In stock
Special Price $1,859.00 Regular Price $2,564.00

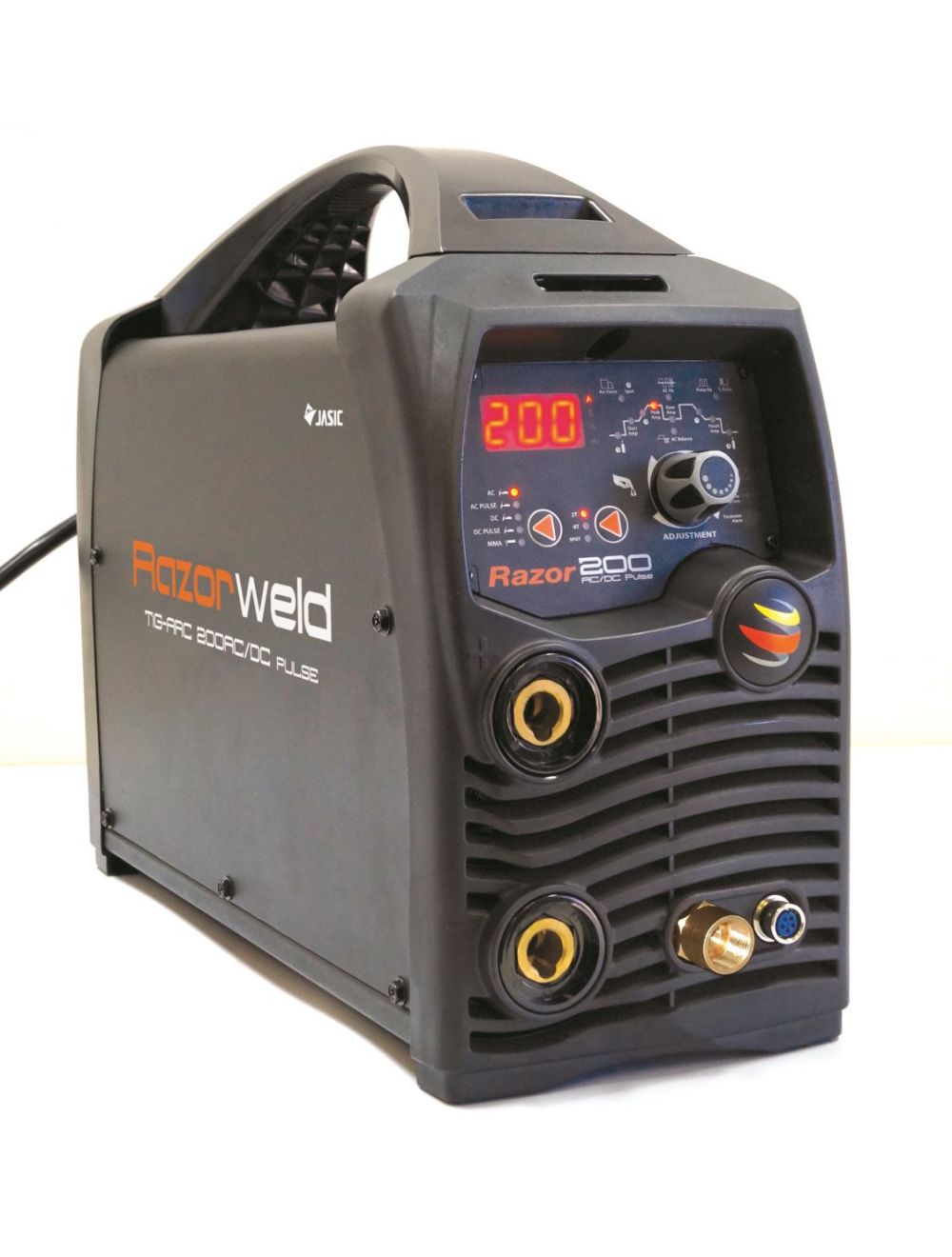

The????RAZOR200ACDC????is a Digital Controlled Square Wave AC/DC TIG inverter welder. Intelligent digital control of the main functions are realized by
intuitive software providing ease of operation and high accuracy. Full TIG functionality, offers simple step by step digital control of functions and
parameters providing complete professional control. HF arc ignition provides Pre Gas with instant arc ignition leaving no tungsten inclusion or
contamination of the tungsten electrode. Digital set of Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas
Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish. Digital Pulse Control
gives full parameter setting of Peak & Base Current, Pulse Frequency & Pulse Width providing control of heat input, penetration & distortion. AC Square
Wave Balance gives control of the electron flow at the tungsten, the AC TIG arc can be adjusted from maximum oxide-layer cleaning on aluminum
through to a deeper penetrating weld. Remote Control Interface provides remote amperage control at the foot-pedal control. The Selectable Tungsten
feature allows the user to initiate softer arc starts when using small tungsten with thin metals avoiding burn through on their work. When using a larger
tungsten it requires a larger initial current and by selecting a larger tungsten size it avoids arc stutter or lack of arc initiation. DC ARC welding delivers a
smooth and stable arc for easy welding of electrodes producing high quality welds including cast Iron, stainless and low hydrogen. Arc Ignition and Arc
Force control allows you to set the ideal arc condition no matter what electrode you choose. Optimized auto protection of the power input provides
auto shut down of the machine when large scale fluctuations occur. Unique air channel design increases the heat dissipation of the power device,
control circuits, minimizes dust absorption, thereby greatly improving longevity and reliability. RAZOR200ACDC is the new standard for Dual voltage
welders making it the ideal choice for both the experienced professional welder and the weekend Warrior alike. Built to our specifications and
manufactured in compliance to CAN/CSA 60974.1

JRW200AC/DC Machine

WP17-FC Tig Torch x 13ft

Earth Lead????x 13ft

Foot Pedal

Argon Regulator

6ft Gas Hose with fittings

115v adapter

Questions? Call us at (781) 937-5655

Part Number JRW200ACDC
Power Supply / Phases (V-Ph) 230V - 1 ???????ñ15%
Rated Input Power (KVA) 5.8
ieff (Amps) 14.6 (TIG)
Imax (Amps) 41
Rated Output 10-200A/17.4V TIG - 20-170A/26.8V MMA
Welding Current Range 10-200 Amps
No-Load Voltage (V) 56
Duty Cycle @ 104?????F 25% @ 200 Amps
Protection Class IP21S
Size (inches) 1 ft 8 5/64?’???????ƒ??????????????? x1 ft 63/64?’???????ƒ??????????????? x1 ft 2 11/64
Weight (pounds) 66
Warranty 3 years on power source
More Information
Amperage 200 AMP
Shipping Calculation: All Shipping Costs are calculated after order is placed and inventory is confirmed
