Edwards 50 Ton Ironworker

Edwards 50 Ton Ironworker

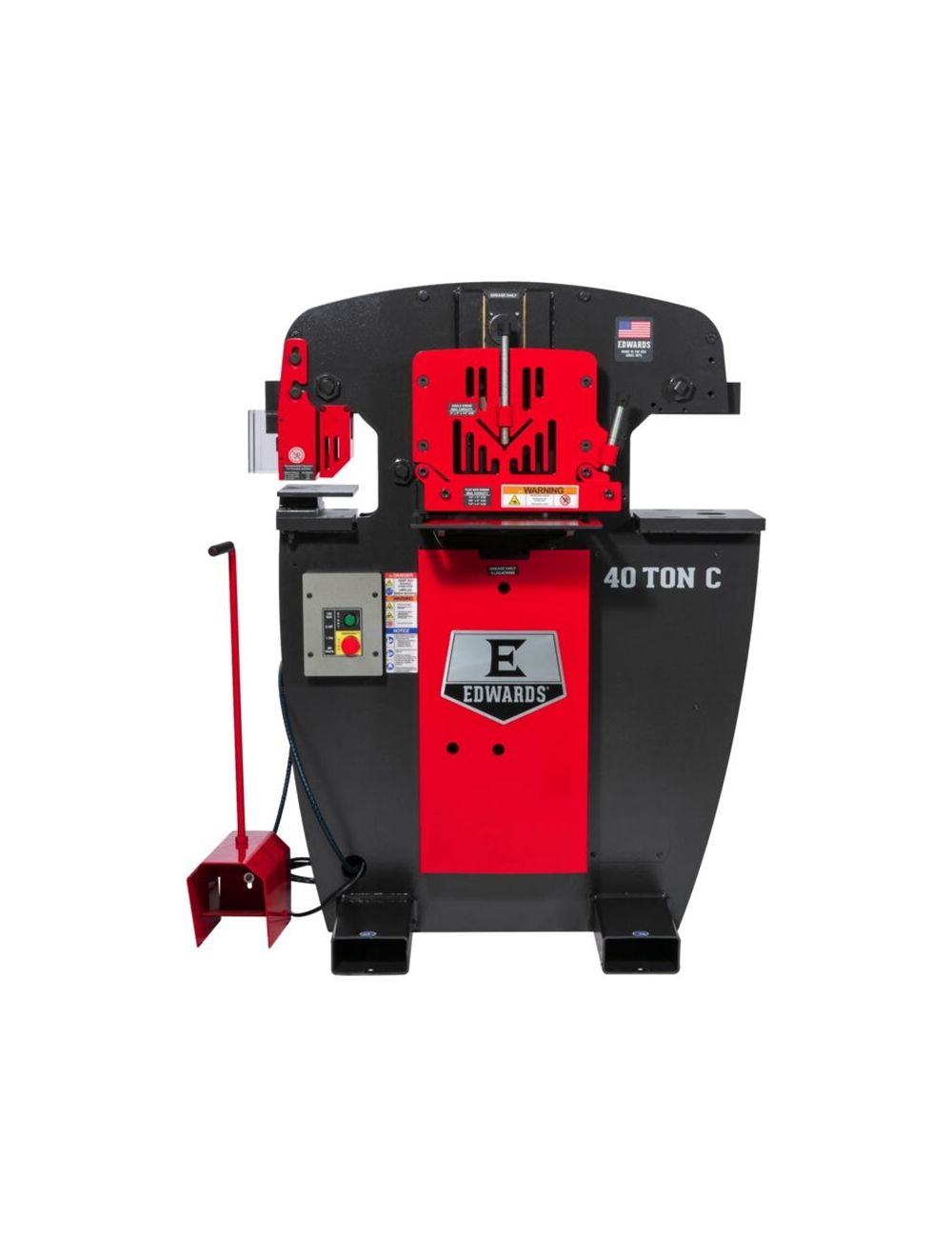

Edwards 40 Ton C Ironworker

40 Tons on 115 Volts

  • Four Available Workstations
  • Universal Open Tooling Station
  • Operates on 115V Power
  • ANSI B11.5-198802) Compliant Guarding
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out

The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional tooling accessories. There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs.

$7,499.00
SKU
IW40C-1P120

GENERAL SPECIFICATIONS

Standard Motor - 2 HP

Product Dimensions (.in) - 36-1/8 x 40 x 53

Weight (lbs.) - 1,720

PUNCH
Rating (tons) - 40

Max Capacity (in.) - 1 diam. in 1/2 mild steel

Work Height (in.) - 34-1/2

Throat Depth (in.) - 7

Stroke (in.) - 1-5/8

FLAT BAR SHEAR
Max. Capacity (in.) - 1/4 x 8 - 3/8 x 6 - 1/2 x 4

Work Height (in.) - 34-3/4

ANGLE SHEAR
Max. Capacity (in.) - 3 x 3 x 1/4

Work Height (in.) - 40

OPEN STATION
Throat Depth (in.) - 10-1/2

Work Height (in.) - 34-1/2
