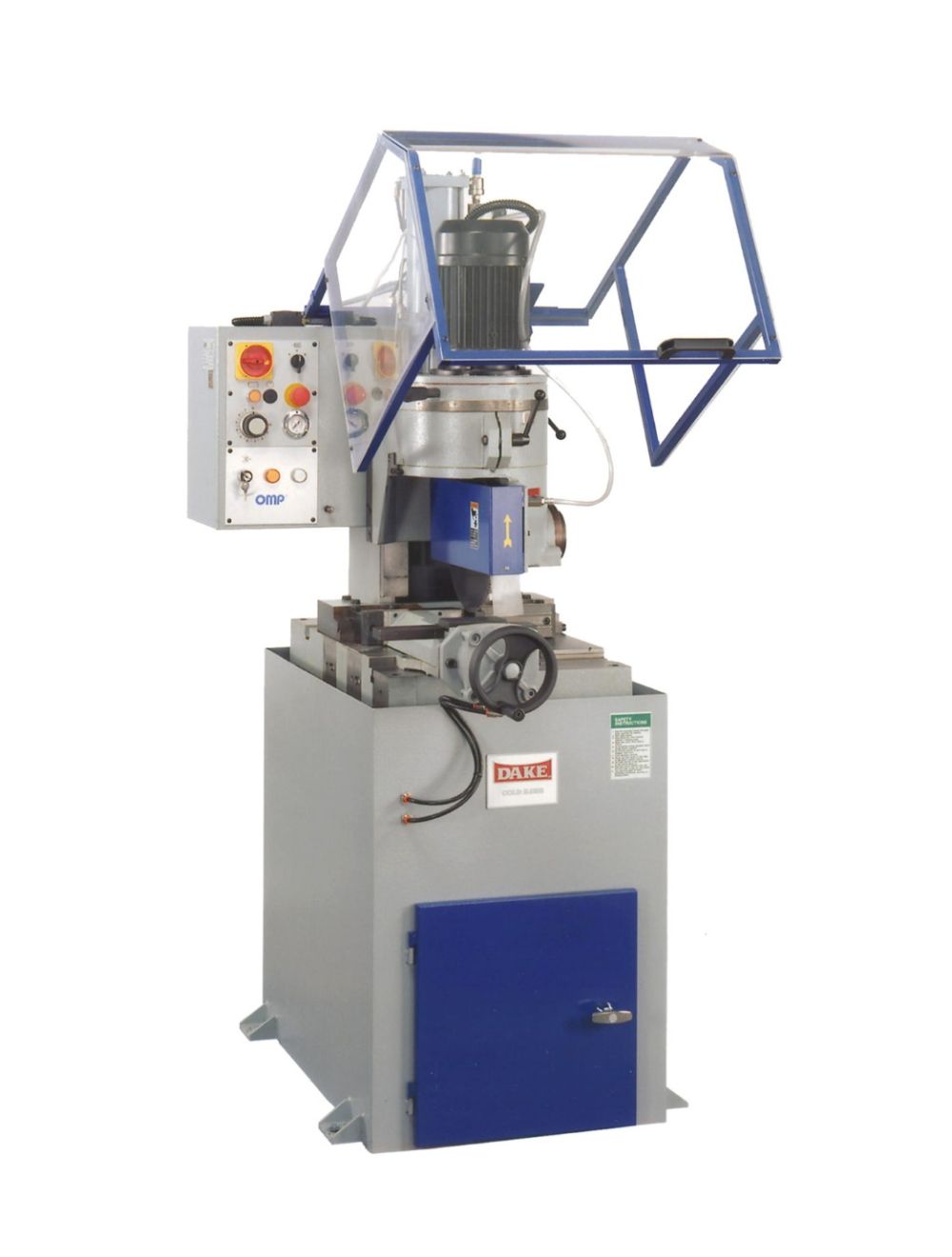

Semi-automatic cold saw that has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder, adjustable pneumatic vise. Variable speed controlled by a frequency inverter increases the material cutting range.
440V model requires step-down transformer for operation (part number: 300674)
|MODEL NUMBER||TECHNICS 350SA||EUROMATIC 370S-L NON-FERROUS||EUROMATIC 370S FERROUS|
|Voltage||220 V/440 V, 3-Phase||220 V/440 V, 3-phase||220 V/ 440 V, 3-phase|
|Cutting Ability||Ferrous/Non-Ferrous/Plastic||Non-Ferrous / Plastic||Ferrous / Non-Ferrous / Plastic|
|Maximum blade diameter||14in||14-1/2in||14-1/2in|
|Maximum vise opening||6-5/8"||8-3/4in||8-3/4in|
|Maximum feed vise opening||n/a||n/a||n/a|
|Maximum Angle||60 left/ 45 right||45 left||45 / 90 left / right|
|Speeds||20-105 rpm||1,500/3,000 rpm||25/50 rpm|
|Weight||890 lbs||1,360 lbs||1,360 lbs|
|Solid round 90 capacity||3-3/8in||4-1/4in||4-1/4in|
|Solid round 45 capacity||3in||3-5/8in||3-5/8in|
|Tube 90 capacity||4-3/4"||5-1/16in||5-1/16in|
|Tube 45 capacity||4in||5in||5in|
|Square 90 capacity||4-1/8in||4-1/4in||4-1/4in|
|Square 45 capacity||3-3/8in||3-7/8in||3-7/8in|
|Rectangle 90 capacity||6-1/4in x 3-1/2in||4in x 7in||4in x 7in|
|Rectangle 45 capacity||3-3/8in x 2-3/4in||4in x 6in||4in x 6in|
Push button or foot-switch activation to avoid operator fatigue.
Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment.
Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke.
Oversized pedestal base to reduce vibration.
Head rotates 45 right and 60 left of center for easy miter cutting.
Removable hardened, serrated vise jaw faces.
Ability to add a programmable feed system to make fully automatic with wide range of capabilities.
Saw blade selector calculator
Tools kit for changing blades
Instruction and service manual
Adjustable positive stop
