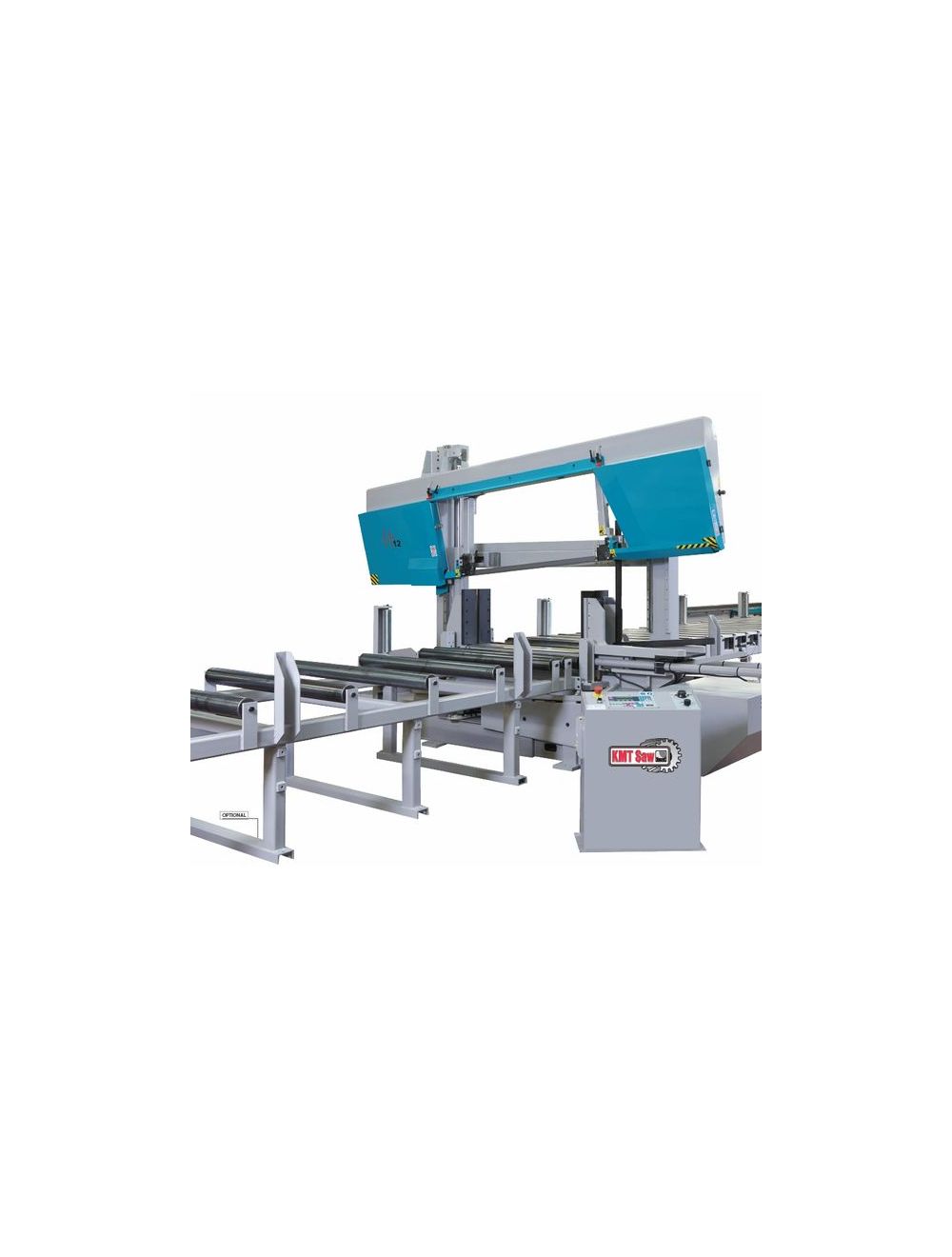

KMT H7 SA 20" Double Column Semiautomatic

H 7 SA, H 8 SA, H 12 SA

Semiautomatic

When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA or the H12 SA.

Semiautomatic

Straight cut

Double column

5 Degree cant

Carbide guides w/ rollers

Largest beam capacity

H7 SA W24

H8 SA W30

H12 SA W36

Perfectly counter balanced

Clamping on both sides of cut

Vibration free sawing in a range of interrupted and solid materials

All moving components on linear bearing guides Hydraulic blade tension on H8 SA and H12 SA

Rear guide is fixed, the outside guide automatically moves close to the cut

Standard Equipment

One Bi-metal sawblade

Low voltage control

TEFC 3 phase drive motor

Totally enclosed worm gear transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Tool kit

Capacities and Specifications

Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.

(see chart in pictures)

Optional Accessories

AC600 10' Conveyor

AC625 5' Conveyor with coolant tray

AC116 Spray mist coolant
