Baileigh SEMI-AUTOMATIC COLD SAW CS-C485SA

Baileigh SEMI-AUTOMATIC COLD SAW CS-C485SA

Baileigh AUTOMATIC CUTOFF SAW CS-475AV

Baileigh AUTOMATIC CUTOFF SAW CS-475AV

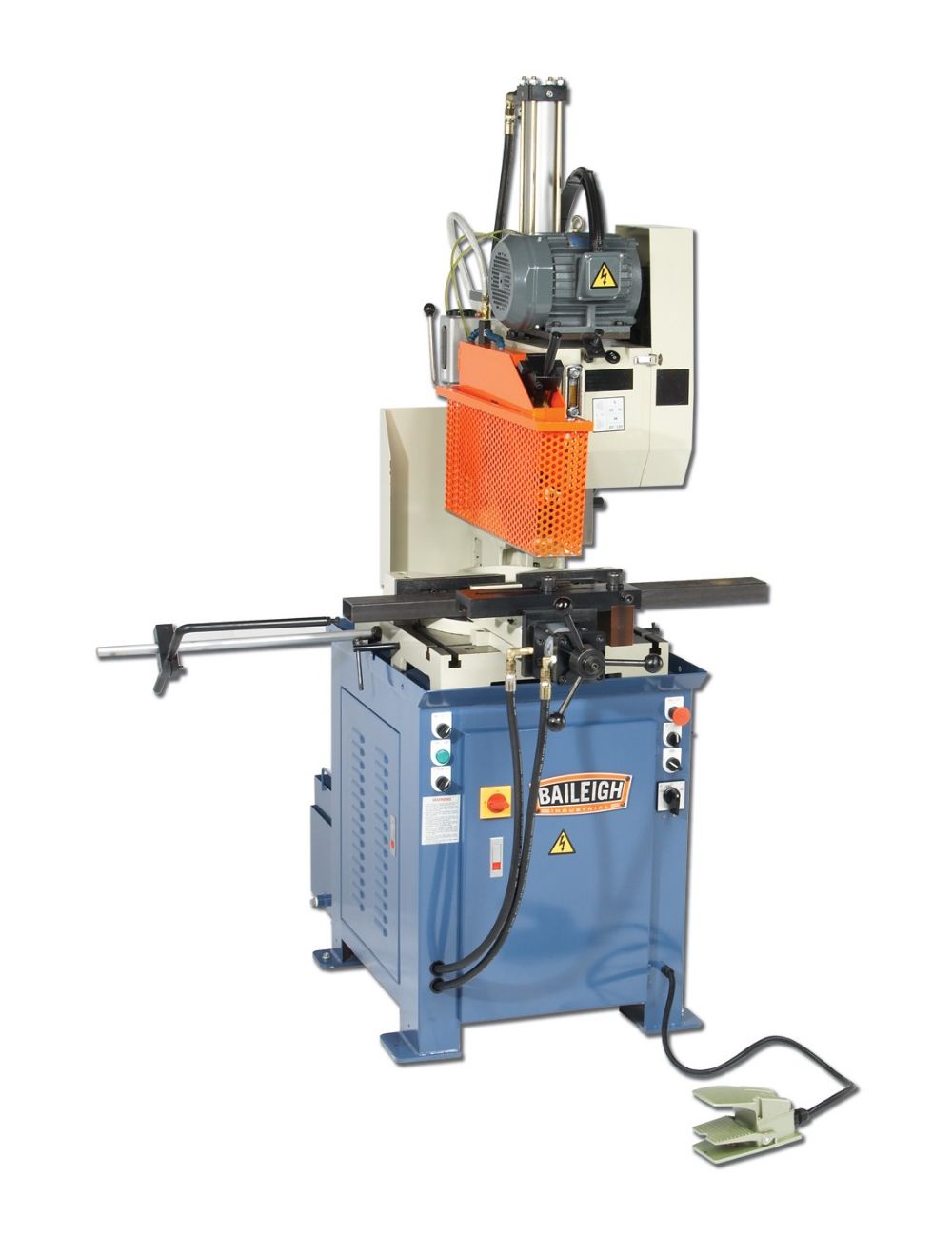

Baileigh SEMI-AUTOMATIC COLUMN COLDSAW CS-C425SA

Built from steel and cast iron, this semi-automatic cold saw will last for decades. All industrial-grade components, like the gearbox, hydraulics, and coolant system, keep cuts accurate.

Recommended for: Large-scale production at any full-service fabrication or machine shop.

was $30,161.43 Special Price $24,849.00
SKU
1002633

Built from steel and cast iron, this semi-automatic cold saw will last for decades. All industrial-grade components, like the gearbox, hydraulics, and coolant system, keep cuts accurate.


  • Accepts a maximum 17' blade.
  • Miters 45 left and 60 right, perfect for angle iron and channel.
  • You can switch between 4 cutting speeds (35, 60, 70, and 120 rpm) to fit your material.
  • 5 hp blade motor runs on 220-volt 3-phase power.
  • Cutting head rides up and down heavy slideway tracks, hardened and ground to offer the most accurate cuts in the industry.
  • Blade head allows you to adjust the descent speed.
  • Adjustable gibs on the column give the slideways a long lifetime of use.
  • You can set a hard vertical stop so that the blade only cuts so far down' great for faster cycle times.
  • Whole carriage, including motor and blade, will slide up or down with the press of a button so you can get your material in there.
  • Hydraulic downfeed movement of the cutting head offers precise cutting pressure through the cycle, which extends blade life.
  • Simple to operate: put the material against the stop rod and press the foot pedal to start cutting.
  • Hydraulic self-centering vise clamps the material, then the saw starts its descent.
  • After the cut, the blade automatically shuts off and returns to home position.
  • Choose manual or semi-automatic mode by turning a dial.
  • Metered stop rod lets you easily make repeatable lengths for production runs.
  • Rugged steel base reduces vibrations to produce burr-free cuts like only a cold saw can.
  • Industrial-grade coolant pump cools the blade and washes chips away.
  • Flood coolant system prolongs blade and machine life, plus it helps the blade give you cuts with smooth edges.
  • Oiler system lets you pump a lever to release oil from the reservoir and keep the head moving up and down without catching.
  • Comes with a box of tools for maintenance and blade changeovers.
  • Replacement parts are in stock for fast shipments.
  • We cover this vertical column cold saw with a 1-year parts warranty.
  • Lifetime technical support by phone means you can contact our team of reps' all with hands-on machine experience' any time you need help.

Recommended for: Large-scale production at any full-service fabrication or machine shop.

SPECIFICATIONS

Item Number CS-C425SA
Country of Manufacture Taiwan
Max. Blade Diameter 17" - 14" standard
Operation Semi-Automatic
Head Miter 45 Left / 30 Right
Round Solid at 45 2.36"
Square Tube at 45 3.93" x 3.93"
Round Tube at 45 4.5"
Rectangle Tube at 45 3.93" x 1.96"
Round Solid at 90 2.75"
Rectangle Tube at 90 4.72" x 1.96"
Square Tube at 90 4.33" x 4.33"
Round Tube at 90 4.92"
Coolant System Yes
Vice Style Single Action
Max. Vice Opening 6"
Head Style Column
Arbor Size 1.26"
Blade Speed Four-Speeds, 35 / 70 & 60 / 120 (rpm)
Power 220V / 3-phase
Shipping Weight 1870lbs
Shipping Dimensions (Inches) 60x44x87

* specifications subject to change without notice.
