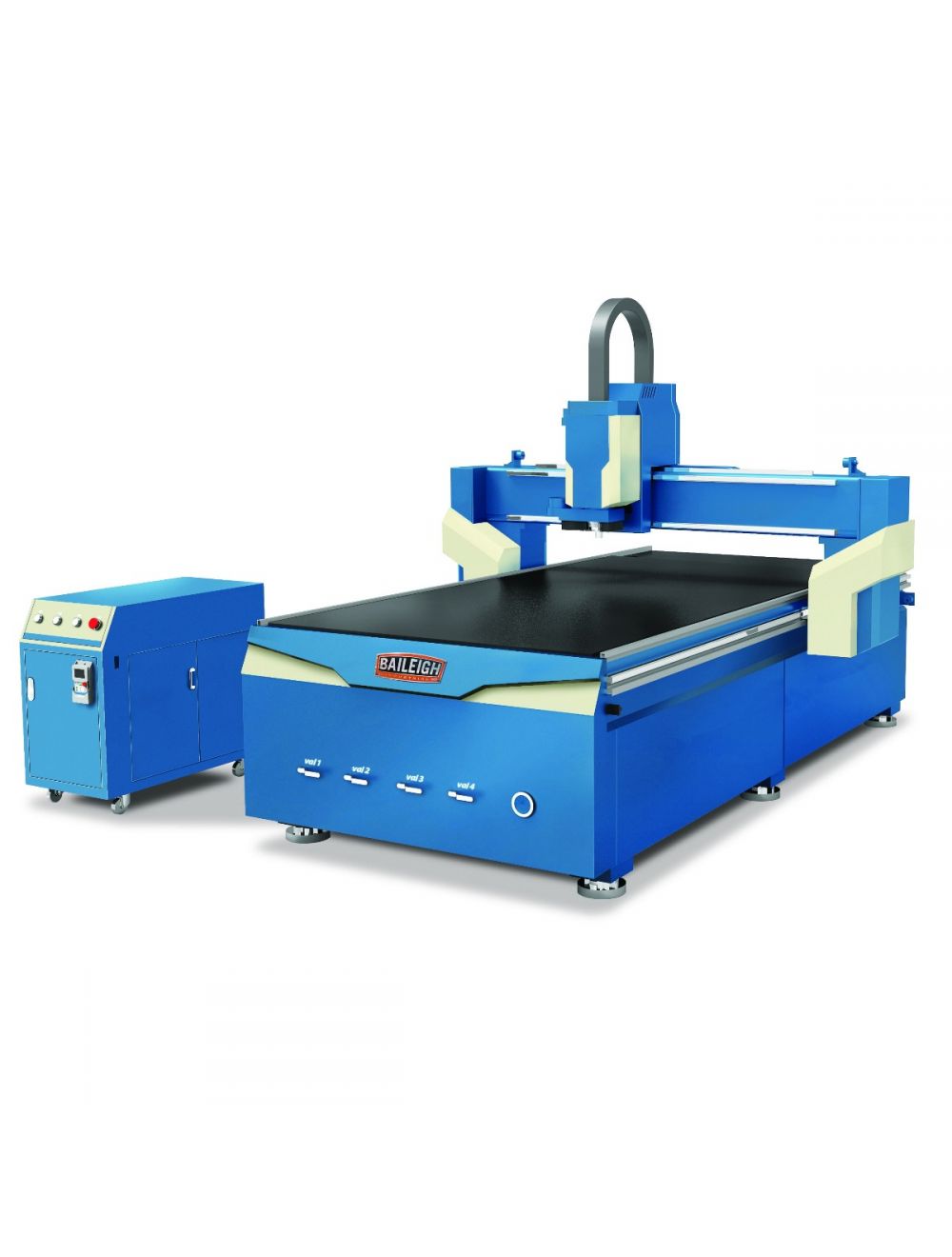

Baileigh CNC WOOD ROUTER TABLE - WR-105V-ATC

This CNC wood router table canautomatically change toolingin just 8 seconds. You canprogram profile switchesright into your design to save time and maintain precision duringindustrial production runs.

• Large5 x 10table.
• Arrivespre-builtwith correct alignment. No complicated set-up process.
• CNC wood router table comes with softwarefor plotting out designs on your computer, then turning them into cut patterns for the machine.
• This industrial router machine runs on220-volt 3-phasepower.
• Powerful12hp spindlecan tackle hard materials without flinching.
• 9 kilowattair-cooled spindlewill stay accurate through years of production.
• Variable spindle speed, from0 to 24,000 rpm.
• Servo motorsensure smooth running at both fast and slow speeds.
• High gantryis up and away from material, allowing you to see what its doing.
• Y axis moves far enough for the gantry to clear the table. You can take thematerial directly off; no need slant it awkwardly.
• Upload your design to the table with aUSB drive. Automatic tooling changes let you swap out bits withcomputer-controlled precision.Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.
• Pre-load up to 6 collets with your chosen profiles; the router will switch between them as programmed.

• Powerful 7hp vacuum in the bedof the wood router machine holds the material in place during the cutting process.

• 4 vacuum zonesallow you to turn on the valve only for the area where youre working.
• Arrange each zones vacuum sealinto the shape of the material to provide well-distributed suction.
• Dust shroudfits over the spindle; you can vacuum out all the dust and chips while youre cutting.
• Fully-welded steel framekeeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
• CNC wood router table covered by a1-year parts warranty.
• You can count onlifetime technical support by phonefrom Baileighs team of reps, all with hands-on product experience.

BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)

The WR-105V-ATC comes standard with BobCAD-Cam Express programming software. You can design orplot out your project on any computerand load the table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.
