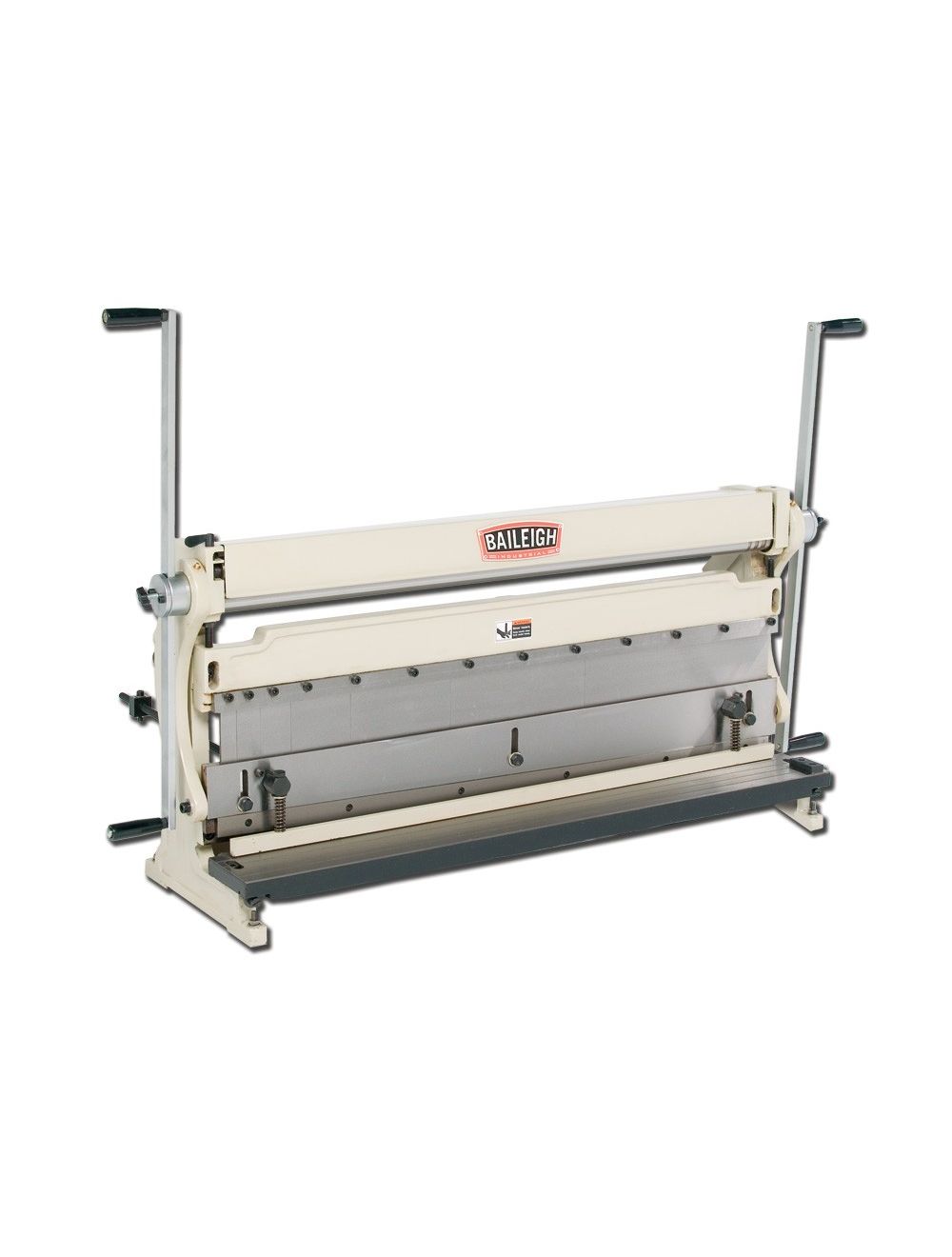

Baileigh 3 IN 1 COMBINATION MACHINE SBR-3020

Slip roll on top. Press brake in the middle. Shear on the bottom. This 3-in-1 combo machine saves space. The Baileigh SBR-3020 brake shear roller combo is a great choice for small shops with low production runs and one-off projects.

• 30' working width for manual shear, press brake, and roll.
• Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
• Slip roll portion has 3 wire grooves.
• Forms rolls down to 1.54' in diameter.
• Vertical press brake portion bends up to 90, so you can make perfect corners.
• Adjust the camber of the tooling to keep pressure in the middle for a consistent bend across the full width.
• Press brake portion includes a V die set with corresponding punch die on top to make a 90 bend.
• Movable fingers on the top beam, ranging from 1' to 10-' ' , can make many box sizes.
• On the shear portion, a spring-loaded hold-down helps reduce burr on the cut and prevent waste.
• Hardened and reversible blades stay sharp for longer.
• Turn the handles 360 to get one full cycle from the slip roll, press brake, or shear.
• Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
• Manual back gauge lets you make repeatable parts without difficulty.
• Thick steel construction, weighing 340 lbs., gives the machine structural strength and maintains accuracy.
• Baileigh SBR-3020 brake shear roller combo comes with a 1-year parts warranty.
• We offer lifetime technical support by phone. Call our team of experienced reps whenever you need help.

Recommended for: Hobbyists, maintenance, and R&D shops.
