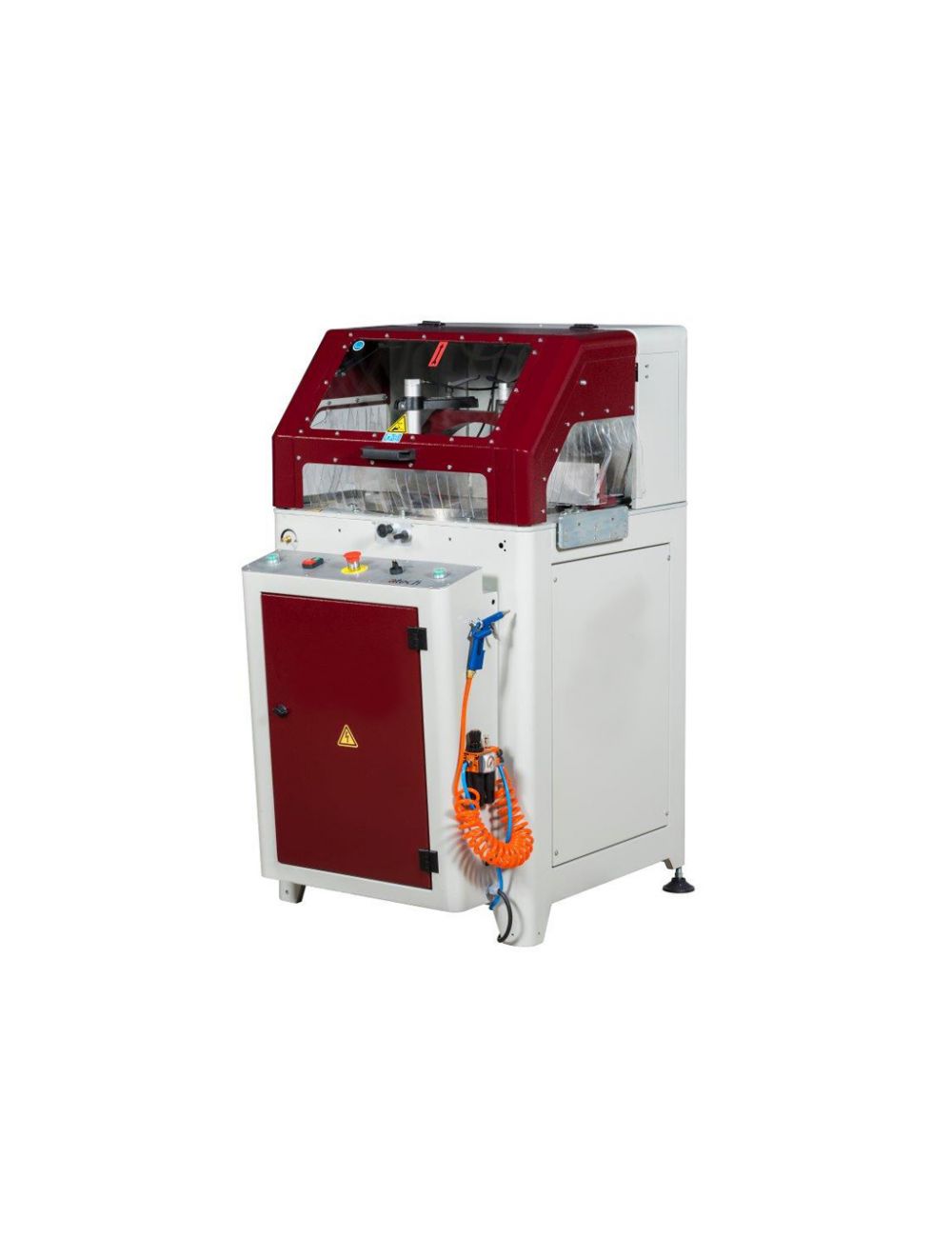

ATech Machinery Crater-06 A 18in 450 mm Heavy Duty Automatic Upcut Miter Saw

• 450 mm (18) carbide tipped saw blade
• Pneumatic twin horizontal & vertical clamps
• Air gun
• Users Manual

• Infeed & outfeed table
• Pneumatic spray mist lubrication
• KN-DX 10 Manual Infeed Roller Table with Digital Read-Out

• Twin horizontal & vertical pneumatic clamps, clamp pressure adjustable
• Hydro-pneumatic saw blade feed, which provides additional power enabling you to cut even solid aluminum
• The movable back fence enables to cut bigger profiles both straight and miter cut
• When the cutting process is finished the saw blade moves down to its starting point automatically
• If the top guard is opened during the cutting process, the saw blade moves down automatically for safety purpose
• Fixed angle adjustments at 15, 22.5, 30, 45, 90 and 60 on right side
• Intermediate angles are adjusted via mechanical stop
• The rising speed of the saw blade can be adjusted as required
• Built-in handle for turning the table to the desired cutting angle
• Connection unit for chip collector is provided

3 HP 3 phase 220/440V 60 Hz	D=30-32 mm D=450 mm (18")	3000 rpm	6-8 Bar (90-120 psi) 35 l/min	90x95x145 cm (35"x37"x57")	225 kg (495 lbs)

Crater-06 A is a heavy dutyautomatic upcut miter sawwith a 18 (450 mm) blade. It has 3 main parts; a 450 mm (18) carbide tippedsawblade, pneumatic twin horizontal & vertical clamps and air guns. There are also infeed & outfeed tables and pneumatic spray mist lubrication systems among optional equipment. Moreover, Crater-06 A has heavy duty construction for long machine life and hydro-pneumaticsaw bladefeed, which provides additional power enabling you to cut even solid aluminum. Its movable back fence enables to cut bigger profiles both straight and miter cut.

In operation, when the cutting process is finished, the saw blade moves down to its starting position automatically. Crater-06 A has a special safety purpose; for instance, if the top guard is opened during the cutting process, the saw blade moves down automatically.

Crater-06 A has also angle adjustments at 15, 22.5, 30, 45, 90 and 60 on the right side, and its intermediate angles are adjusted via a mechanical stop. In addition, the rising speed of thesawblade can be adjusted as required. It also has a built-in handle for turning the table to the desired cutting angles. You can access further information about the Crater-06 A at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog.

Technical specifications and features are subject to change without prior notice.
